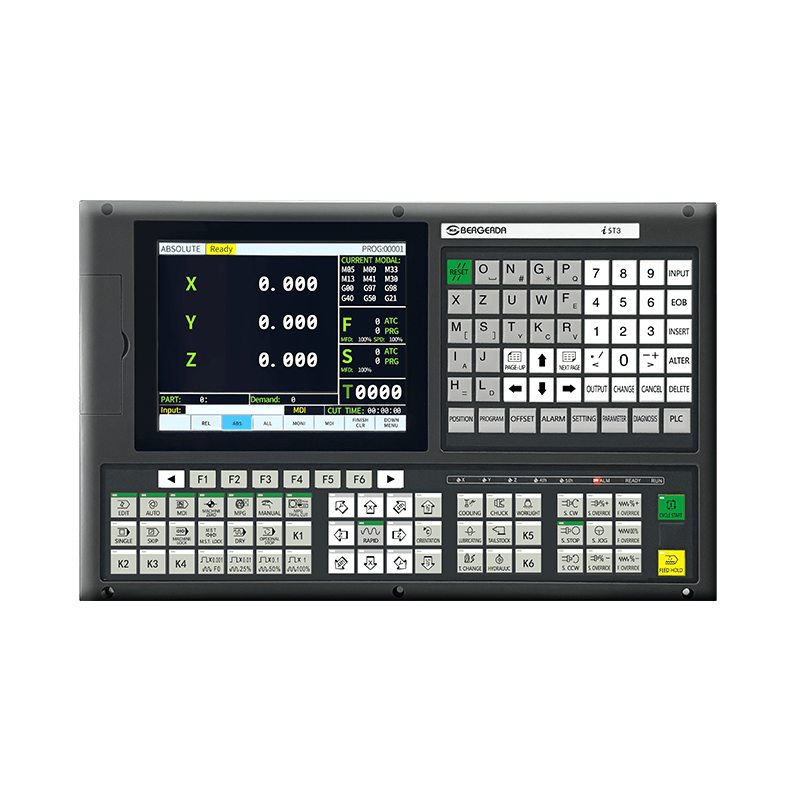

Controlled axes:3 feed axes, 1channel 0V~10Vanalog voltage
Linked axes: 3 linear axes, 2 arc axes
8-inch widescreen LCD, resolution 800X600,8soft function keys
Spindle magnification 50%~120%, 4 levels of real-time adjustment
Fast magnification F025%50%100%, 4 levels of real-time adjustment
PLC program online display, real-time monitoring, support PLC warning and PLC alarm
Program preprocessing, can achieve smooth and seamless connection between program segments
Maximum fast moving speed can reach 60m/min
430M program storage space, can store 400programs
Screw pitch compensation, maximize machining accuracy
Automobile manufacturing, aerospace industry, mold manufacturing. precision machining, electronic product manufacturing, stone and wood processing, medical device manufacturing, small batch customization and prototyping, etc.
Simple interface design,easy for customers to check system status
Tool setting help,more convenient for customers

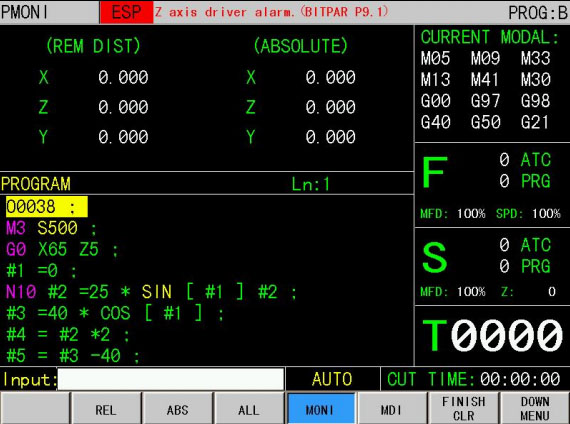

The program displays many lines,showing the program,coordinates and running status

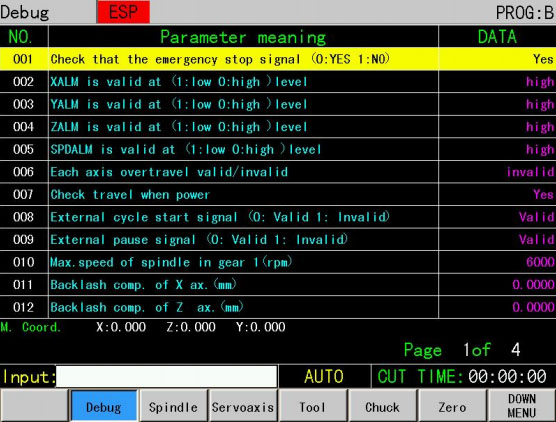

Arrange parameters by category,easy for operators to find parameters

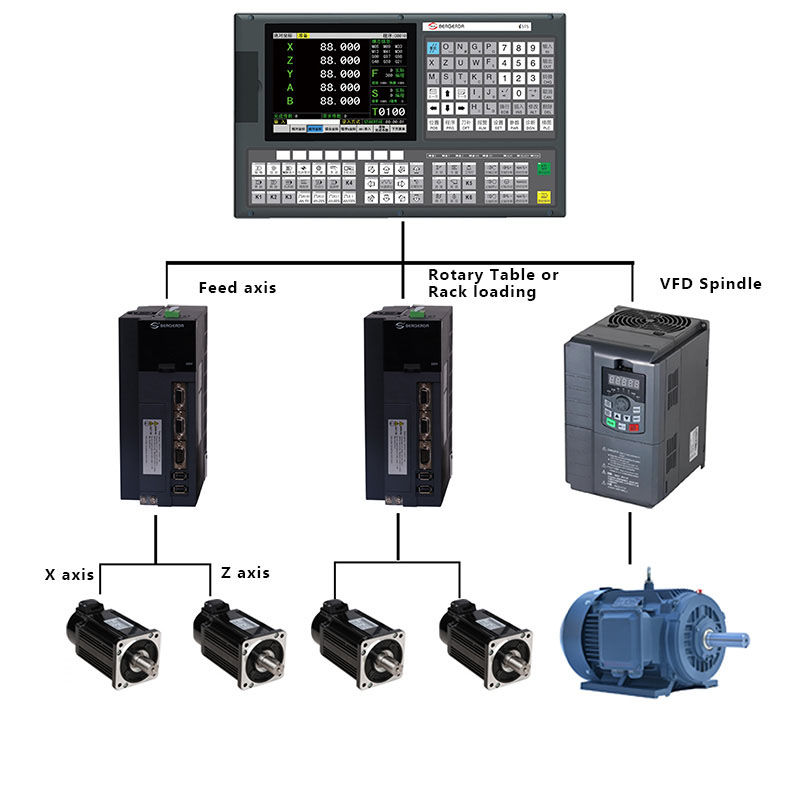

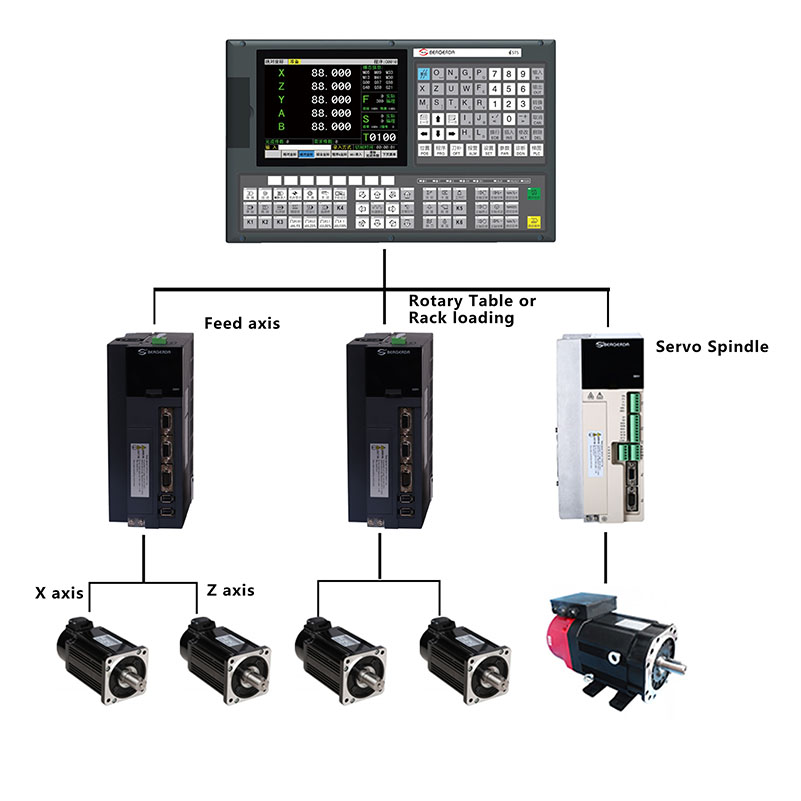

| Technical Specifications | |
|---|---|
| Technical Item | Specification |
| Control axis | Maximum number of controlled axes: 3 axes |
| Maximum number of linked axes: 3 axes | |
| Feed axis function | Metric input (G21): -9999.9999mm~9999.9999mm, minimum command unit: 0.0001mm Inch input (G20): -999.9999inch~999.9999inch, minimum command unit: 0.0001inch Electronic gear: command multiplication factor 1~65536, command division factor 1~65536 Fast moving speed: maximum 60m/min Fast rate: F0, 25%, 50%, 100% four-level real-time adjustment Feed rate: 0~150% sixteen-level real-time adjustment Handwheel feed: 0.001mm, 0.01mm, 0.1mm, 1mm four-speed Single step feed: 0.001mm, 0.01mm, 0.1mm, 1mm four-speed Interpolation mode: linear interpolation, circular interpolation |
| G code | G code: G00、G01、G02、G03、G04、G10、G17、G18、G19、G28、G30、G31、G32、G33、 G34、G40、G41、G42、G50、G54、G55、G56、G57、G58、G59、G71、G72、G73、G74、 G75、G76、G90、G92、G94、G96、G97、G98、G99、G185 |
| C-axis function | Speed and position switching, spindle position control, any angle indexing |
| Thread function | Ordinary thread (following the spindle), rigid thread |
| Single-start/multi-start metric and inch straight thread, taper thread and end thread, equal pitch thread and variable pitch thread | |
| Thread tail length, angle and speed characteristics can be set Thread pitch: 0.01mm~500mm or 0.06 teeth/inch~2540 teeth/inch | |
| Spindle function | 1 channel 0~10V analog voltage output Spindle encoder: encoder line number can be set (100p/r~5000p/r) Encoder and spindle transmission ratio: (1~255): (1~255) Spindle rate: 50%~120%, a total of 8 levels of real-time adjustment |

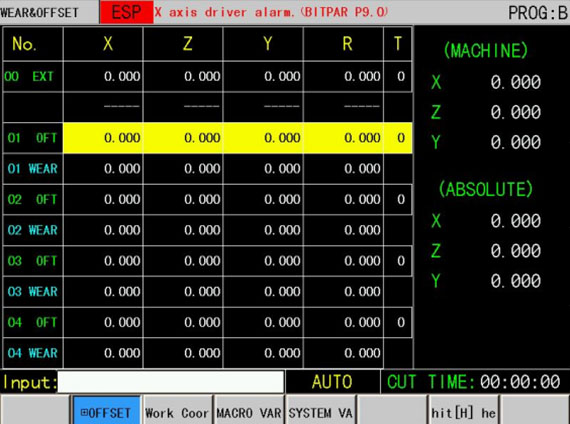

| Tool function | Tool length compensation (32 groups); tool tip radius compensation (C type); tool wear compensation (32 groups); |
| Tool setting method: fixed-point tool setting, trial cutting tool setting, reference point tool setting | |
| Tool deviation execution method: mostly coordinate method, tool movement method Support 4-station tool holder, tool arrangement | |
| PLC function | Two-level PLC program, processing speed is 1.5μs/step basic instruction; up to 4700 steps, 8ms for the first-level program cycle, online editing PLC function PLC program online display, real-time monitoring, support PLC warning and PLC alarm Support multiple PLC programs (up to 20), the currently running PLC program can be selected Number of instructions: 45 (including 10 basic instructions and 35 functional instructions) |
| M code | M00, M02, M20, M30, M03, M04, M05, M08, M09, M10, M11, M12, M13, M14, M15, M32, M33, M41, M42, M43, M44, M80 Pn, M90 Pn, M98, M99; User-defined M command: M80 Pn~M90 Pn realizes special function control |
| Program editing | Program capacity: 435MB, can store up to 400 programs (including subroutines and macro programs) |

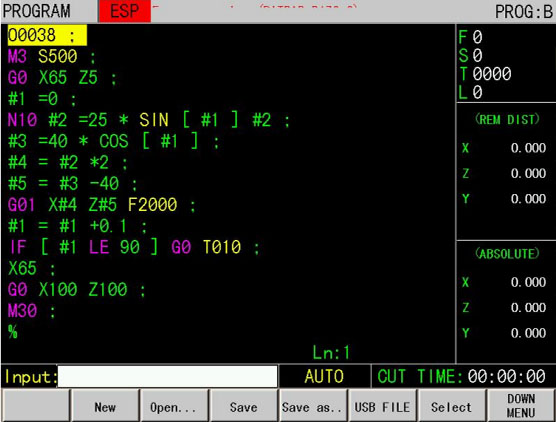

| Editing function: program/program segment/word search, modification, deletion, copy, paste | |
| Program format: supports statement-based macro code programming, supports relative coordinates, absolute coordinates and mixed coordinates programming | |
| Program call: supports macro program/subroutine call, allows 4-fold subroutine nesting | |
| Communication function | USB: copy U disk file to system operation, support PLC program, system software U disk upgrade |
| Reliability and safety functions | Emergency stop; data backup and recovery; hardware travel limit; software travel check |
| Simplified programming function | Fixed cycle, compound cycle, drilling cycle, automatic chamfering, support macro A, macro B programming |
