Matching Incremental, Supports External Second Encoder Control Positioning
The maximum speed of 8000 rpm, 8000 speed can be achieved at any angle precise positioning
Rigid tapping,external switch direct positioning
Concise display operation panel, supporting PC debugging software for customer debugging and diagnosis
With RS485 communication function,low-cost communication can be realized

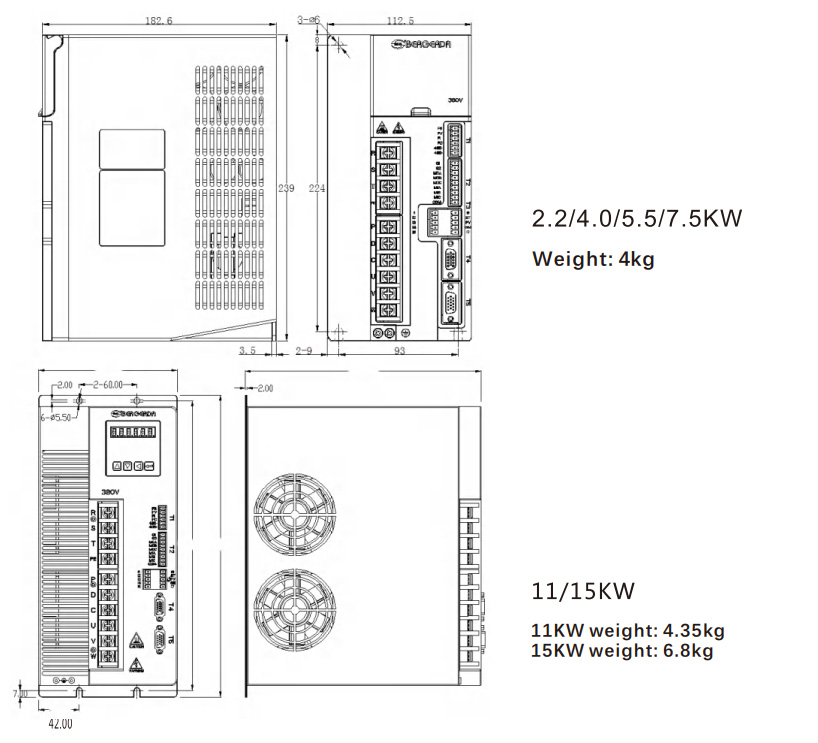

Book-type structure, compared with the appearance of the traditional inverter style, it save more space in the cabinet, more atmosphere.

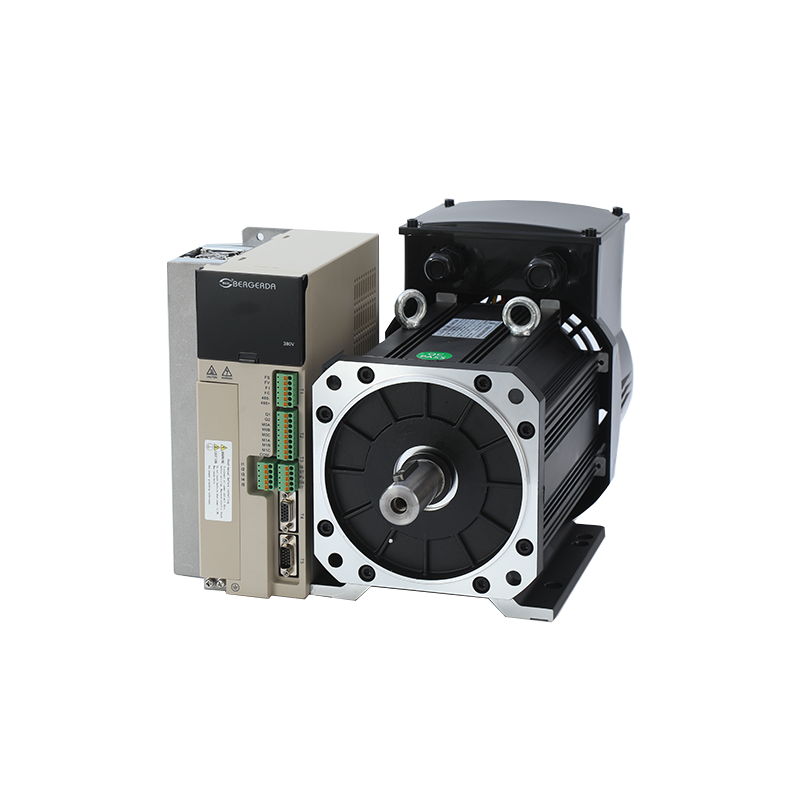

S series induction asynchronous servo drives have features of high power and high torque. And can achieve High speed, high acceleration performance. With a wide range of tapping, orientation, clamping, reduction ratio, analog control, internal speed
control and other functions
♦ CNC milling machine
♦ CNC lathe
♦ vertical and horizontal machining center
♦ drilling and tapping center
♦ engraving and milling machine
♦ hobbing machine
♦ CNC boring machine
♦ turning and milling complex machining center
♦ replacing the high-end applications of the inverter
