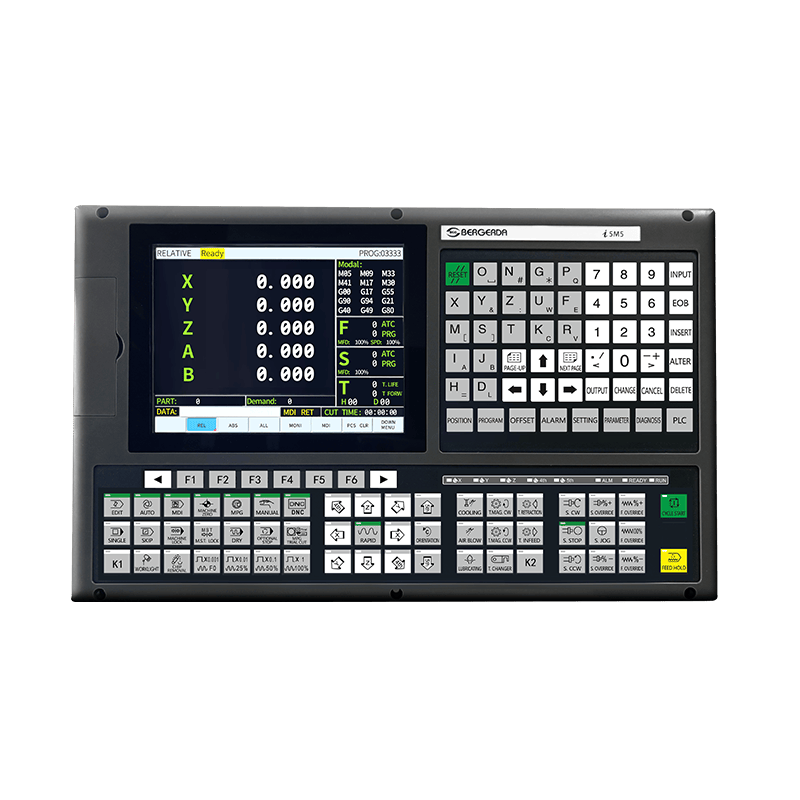

Product function:
Controlled axes: 5 feed axes,1channel OV~10V analog voltage, 1pulse spindle
Linked axes: 5linear axes,3arc axes
Support any tool magazine function,
Open PLC, support secondary development
G10 command online modification of tool compensation, parameters and other operations
Support fixed cycle, drilling cycle, rigid tapping
Program preprocessing, can achieve smooth and seamless connection between program segments
Maximum fast moving speed can reach 60m/min, maximum cutting speed can reach 30m/min
430M program storage space,can store 400programs,one program maximum10M
Automobile manufacturing, aerospace industry, mold manufacturing. precision machining, electronic product manufacturing, stone and wood processing, medical device manufacturing, small batch customization and prototyping, etc.
| Technical Specifications | |
|---|---|
| Technical Item | Specification |
| Control axis | Maximum number of controlled axes: 5 axes |
| Maximum number of linked axes: 5 axes | |
| Feed axis function | Metric input (G21): -9999.9999mm~9999.9999mm, minimum command unit: 0.0001mm Inch input (G20): -999.9999inch~999.9999inch, minimum command unit: 0.0001inch Electronic gear: command multiplication factor 1~65536, command division factor 1~65536 Fast moving speed: maximum 60m/min Fast rate: F0, 25%, 50%, 100% four-level real-time adjustment Feed rate: 0~150% sixteen-level real-time adjustment Handwheel feed: 0.001mm, 0.01mm, 0.1mm, 1mm four-speed Single step feed: 0.001mm, 0.01mm, 0.1mm, 1mm four-speed Interpolation mode: linear interpolation, circular interpolation |
| G code | G code: G00、G01、G02、G03、G04、G10、G15、G16、G17、G18、G19、G20、G21、G22、G23、G24、G25、G26、 G27、G28、G29、G30、G31、G32、G33、G34、G35、G36、G37、G38、G40、G41、G42、G50、G54、G55、G56、 G57、G58、G59、G73、G74、G80、G81、G82、G83、G85、G87、G90、G92、G94、G95、G96、G97、G98、G99、 |
| Tapping function | Normal tapping (following the spindle), rigid tapping |
| Spindle function | 1 channel 0~10V analog voltage output Spindle encoder: encoder line number can be set (100p/r~5000p/r) Encoder and spindle transmission ratio: (1~255): (1~255) Spindle ratio: 50%~120%, a total of 8 levels of real-time adjustment |
| Tool function | Tool length compensation (32 groups); tool wear compensation (32 groups); tool tip radius compensation (C type); G54-G59 coordinate system |
| PLC function | Two-level PLC program, processing speed is 1.5μs/step basic instruction; up to 4700 steps, 8ms for the first-level program cycle, online editing PLC function PLC program online display, real-time monitoring, support PLC warning and PLC alarm Support multiple PLC programs (up to 20), the currently running PLC program can be selected Number of instructions: 45 (including 10 basic instructions and 35 functional instructions) |
| Simplified programming function | Supports row tool magazine, bamboo tool magazine, disc robot tool magazine, servo bamboo tool magazine, umbrella tool magazine, chain tool magazine |
| M code | M00, M02, M20, M30, M03, M04, M05, M06, M07, M08, M09, M10, M11, M12, M13, M18, M19, M28, M32, M33, M41, M42, M43, M44, M63, M64, M65, M80 Pn, M90 Pn, M98, M99; User-defined M command: M80 Pn~M90 Pn realizes special function control |
| Program editing | Program capacity: 435MB, can store up to 400 programs (including subroutines and macro programs) |
| Editing function: program/program segment/word search, modification, deletion, copy, paste | |
| Program format: supports statement-based macro code programming, supports relative coordinates, absolute coordinates and mixed coordinates programming | |
| Program call: supports macro program/subroutine call, allows 4-fold subroutine nesting | |
| DNC online processing | Supports online processing with USB flash drive, supports programs less than 10M |
| Communication function | USB: copy U disk files to system operation, support PLC program, system software U disk upgrade |
| Reliability and safety functions | Emergency stop; data backup and recovery; hardware travel limit; software travel check |
| Simplified programming function | Fixed cycle, compound cycle, drilling cycle, rigid tapping, automatic chamfering, statement-type Macro Programming |
| Practical operation | Handwheel test cutting, graphic simulation, automatic tool setting, three-point tool setting |
