Compact size and innovative design save space in the electrical cabinet.
Compatible with 5-pair pole 17-bit optical/magnetic encoders, offering high-speed performance and excellent cost-effectiveness.
Features multiple protection and alarm functions, including overcurrent, overvoltage, overheating, and encoder failure.
Standard RS485 communication function for uploading, downloading, and network control.
Position control, speed control, and torque control with Modbus communication are interchangeable to meet various general applications.
Full series CE certified.

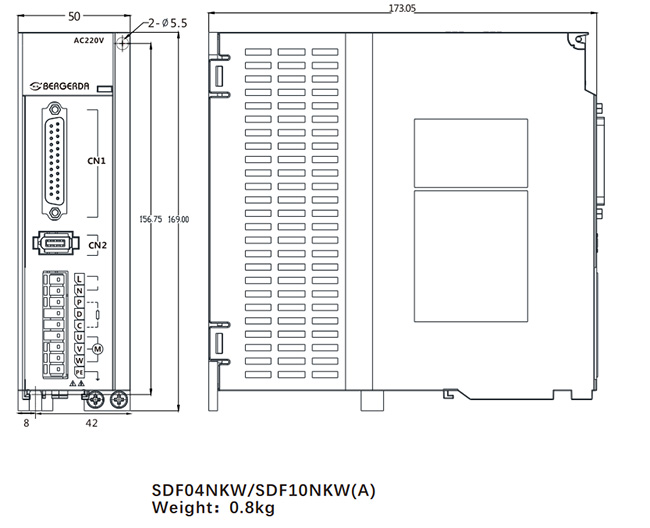

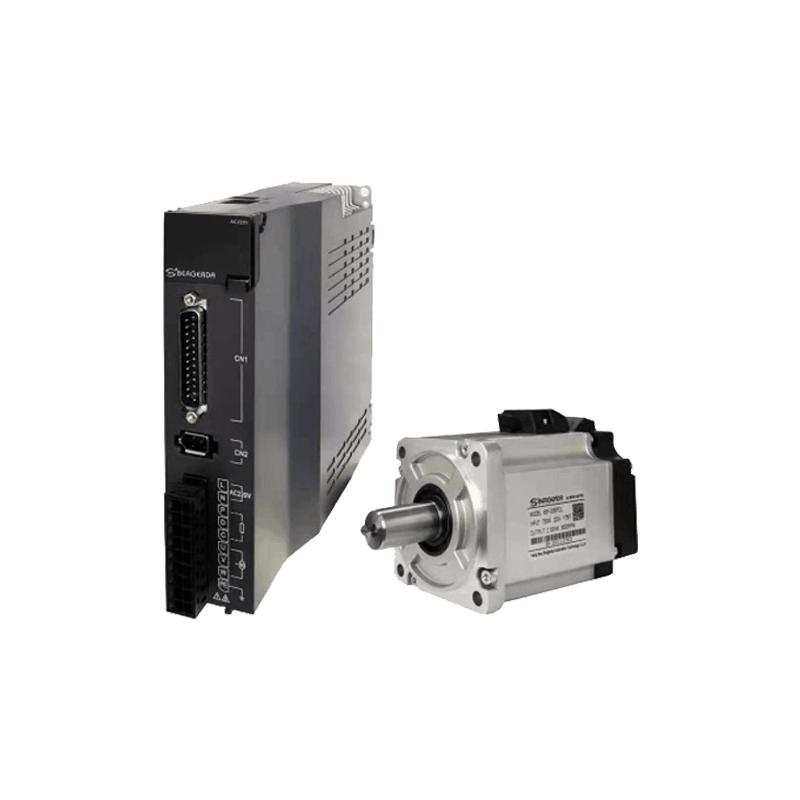

This product is positioned in the field of automation equipment and instruments in various motion control fields o medium and small power.Adopt advanced control algorithm to realize high-precision control of servo motor,It is the first choice for users expecting space saving, superior high- speed performance and strong price - performance competition.
Suitable for the following occasions：
♦ High precision
♦ Low power
♦ High response
♦ Installation space is limited
Mature application industry：
♦ Industrial robot
♦ Semiconductor equipment
♦ Engraving equipment
♦ Measuring equipment
♦ Medical equipment
♦ Robot
| External connection | Input power | Single or Three phase AC170~253V 50/60Hz | |||
|---|---|---|---|---|---|
| control type | SVPWM control | ||||
| encoder | 17bit magnetoelectric/photoelectric encoder | ||||
| Internal function | Display and operation | Six bits seven-segment display LED: Four function keys | |||
| Control mode | Position control/speed test run/jog run/internal positioningPLC function/RS485 communication | ||||
| Braking function | built-in,External optional | ||||
| Protection function | Undervoltage, overvoltage, overload, overcurrent, encoder abnormality,brake abnormal, position excess error, etc. | ||||
| Position control mode | Command control method | External pulse | |||
| External command pulse input | Form | pulse + direction ;CW/CCW pulse ;A/B quadrature | |||
| Maximum frequency | Differential: 2MHZ open collector: 200KHZ | ||||
| Electronic gear ratio | 1~32767/1~32767 | ||||
| Speed control mode | Internal speed control | I/Oterminal control | |||
| Input/output signal | Position signal output | Output type | ABZ phase drive output / Z phase collector open circuit output | ||
| Frequency division ratio | 1/255/~1 | ||||

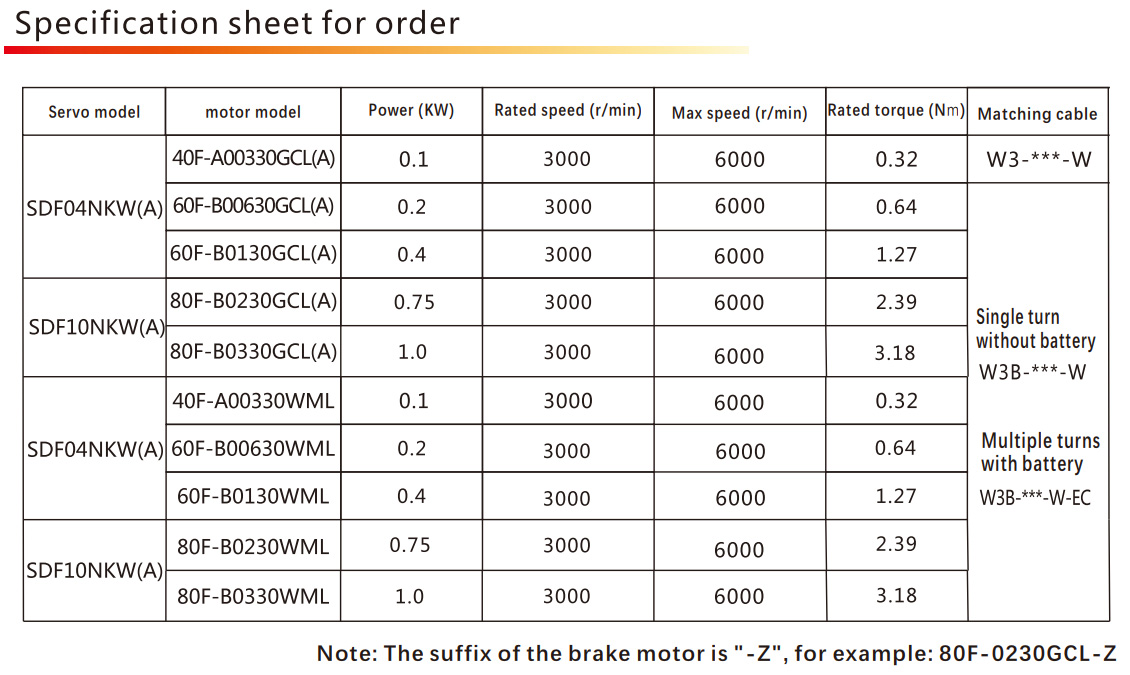

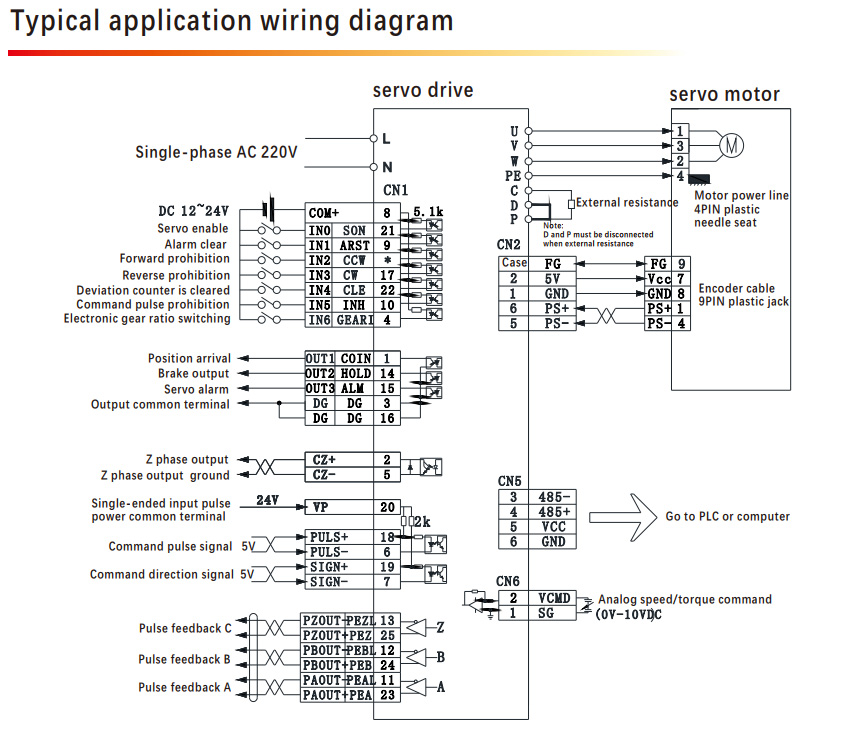

| input signal | 7points photoelectric isolation input | 1) Servo enable 2) Alarm clear 3) Forward drive prohibited 4) Reverse drive prohibited 5)Position deviation counter reset 6) Input pulse prohibited 7) No definition | |||
| output signal | 4points open collector | 1) Servo ready output 2) Servo alarm output 3) Z signal output 4) Brake output | |||
| Use environment | temperature | Working: 0°C~55°C Storage: -20°C~80°C | |||
| humidity | Less than 90% (without condensation) | ||||
